Problem - Es108 Incoming audio signal becomes quiet as soon as ES108 is switched on (DYN In)

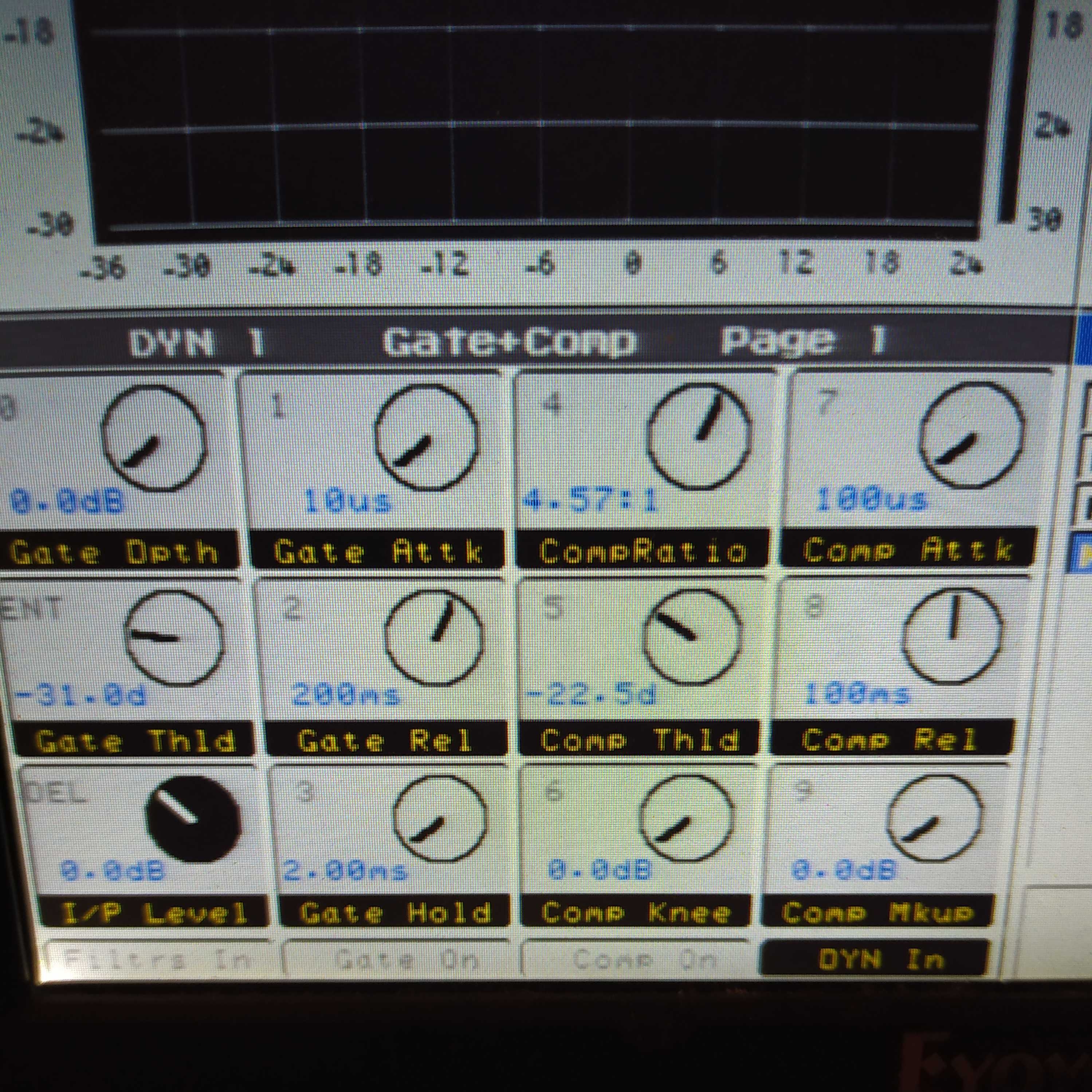

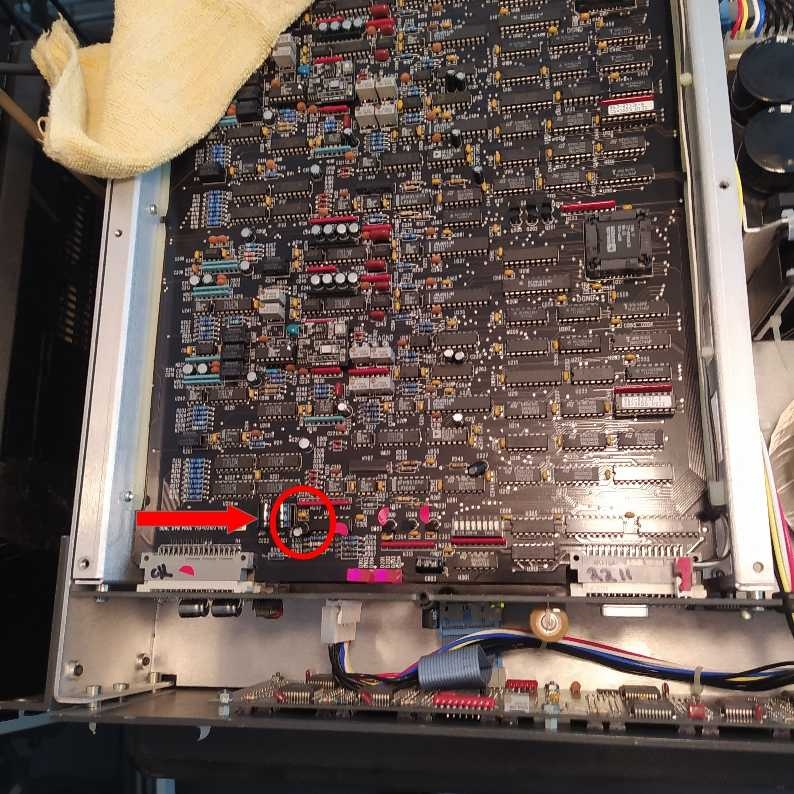

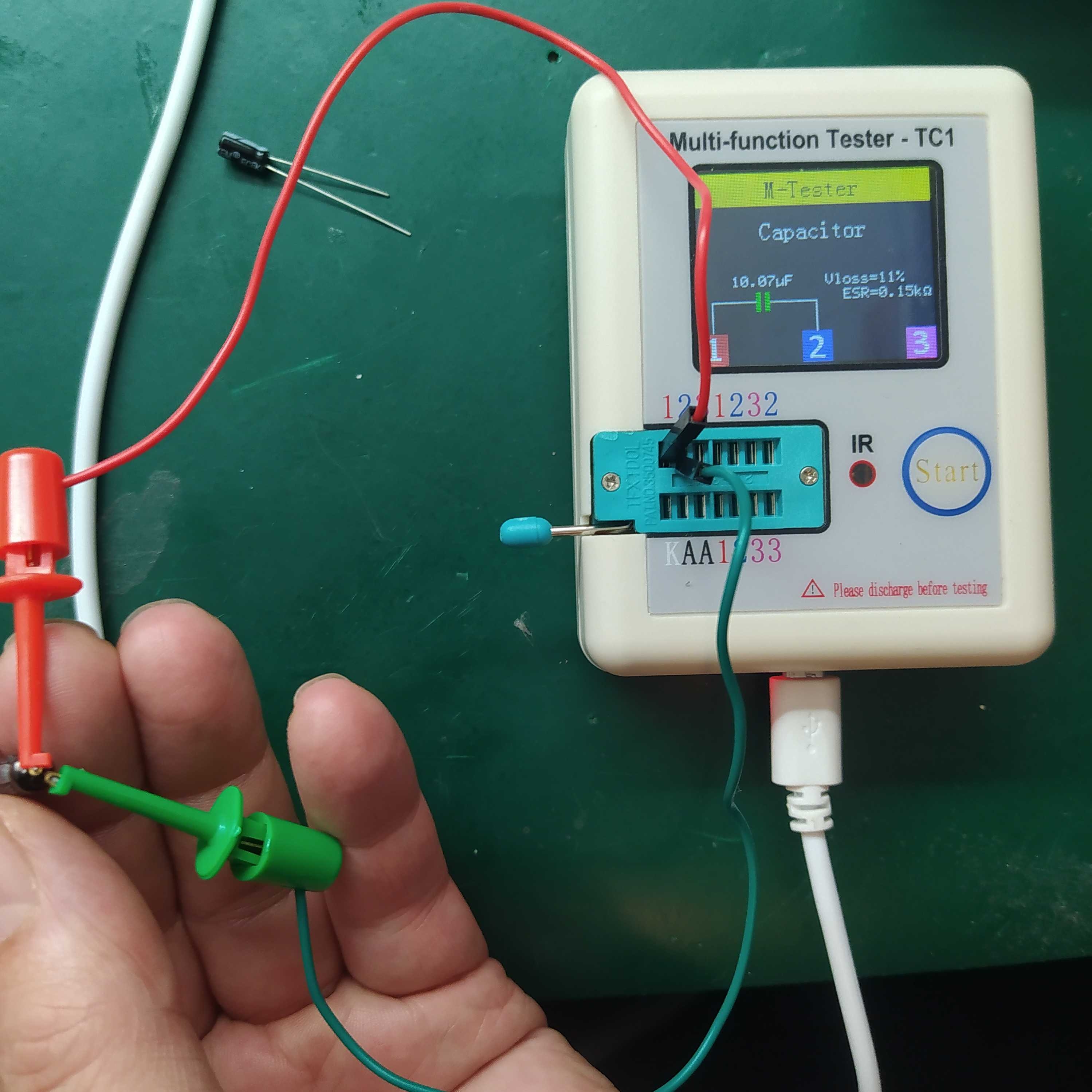

Description Incoming audio signal becomes quiet as soon as ES108 is switched on (DYN In) First switch off the following: - "Filter In" -> Bypass - "Gate On" -> Bypass - "Comp On" -> Bypass - "DYN In" -> Bypass Is the error still there? No! Ok, now we activate "DYN In". Is the error still there? Yes! The error always appears when "DYN In" is switched on (Photo 3). Der Fehler ist auf linken und rechten Kanal. Theodor prüft nun die Spannungsregler. U307,U308,U309. Spannung ist ok. Von U306 generierten Referenzspannungen ebenfalls geprüft. Diese sind falsch. Danach den Eingang DC_Ref ist ok. Aber die Spannung am Eingang von U306A war nicht ok. U306 hat einen sehr großen Eingangswiderstand desshalb ist der Eingangsstrim normalerweise vernachlässigbar. Daraus folgt: Durch den den Widerstand R301 mehr Strom als erwartet fliest!! D.h. folgendes könnte defekt sein: - U306IC (Operationsverstärker) defekt oder - C301 oder - C302 Wir tauschen C301 und C302 aus! Wir messen nun diese herausgelöteten Bauteile und sehen, Kapazität von Kondensator zu niedrig. Vloss ist zu gross. (Leckstrom). We can see that the old capacitor has lost capacitance (photo 2). Now the incoming signal is as loud as the outgoing signal!
