Problem - Console Interference frequency on voltage

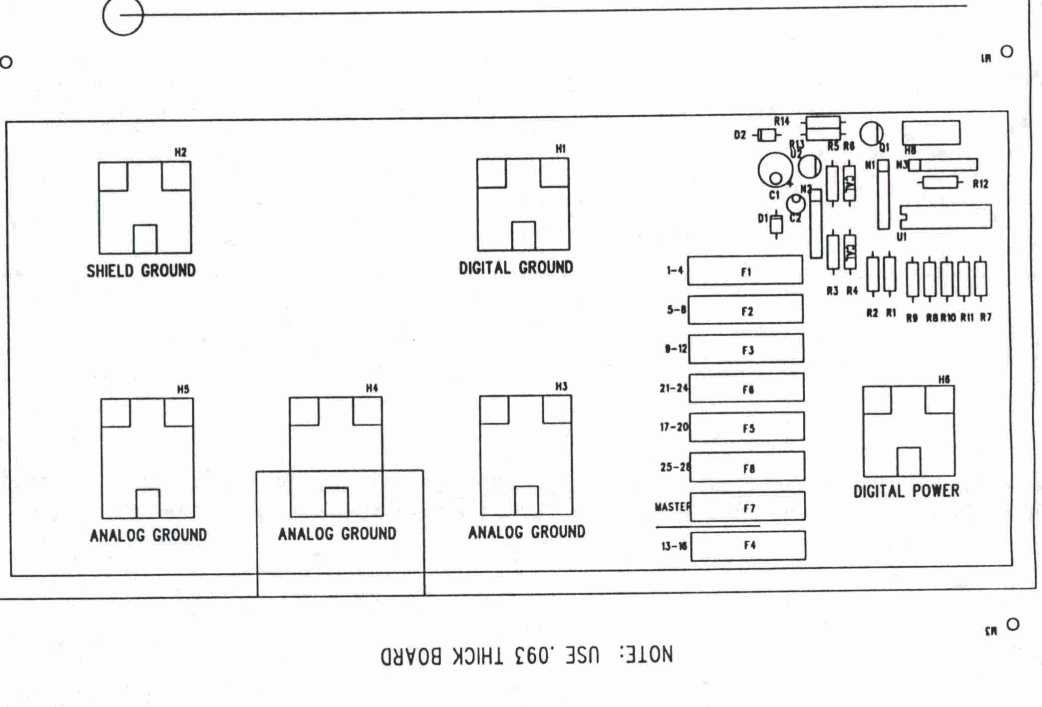

Description Important: If you have an Interference frequency on the output of the regulator board where the 20V comes out, so sometimes it could be, because the grounding is not perfect. Mr. Bremer says that often the solder joints of the powerboard are not good and has to be re-soldered with solder. (Power Distribution Board Component Placement.pdf) Resolder: Remove the powerboard, and resolder at the back the: - shield ground - digital ground - 3 x analog ground Important: And Mr.Bremer often remarked as well, the power supply unit must be fully inserted in the tower and the screws on the sides (which fix the power supply unit to the tower) must be screwed in (at least one screw).
