Problem - Console

Monitor A only right channel is working

Description

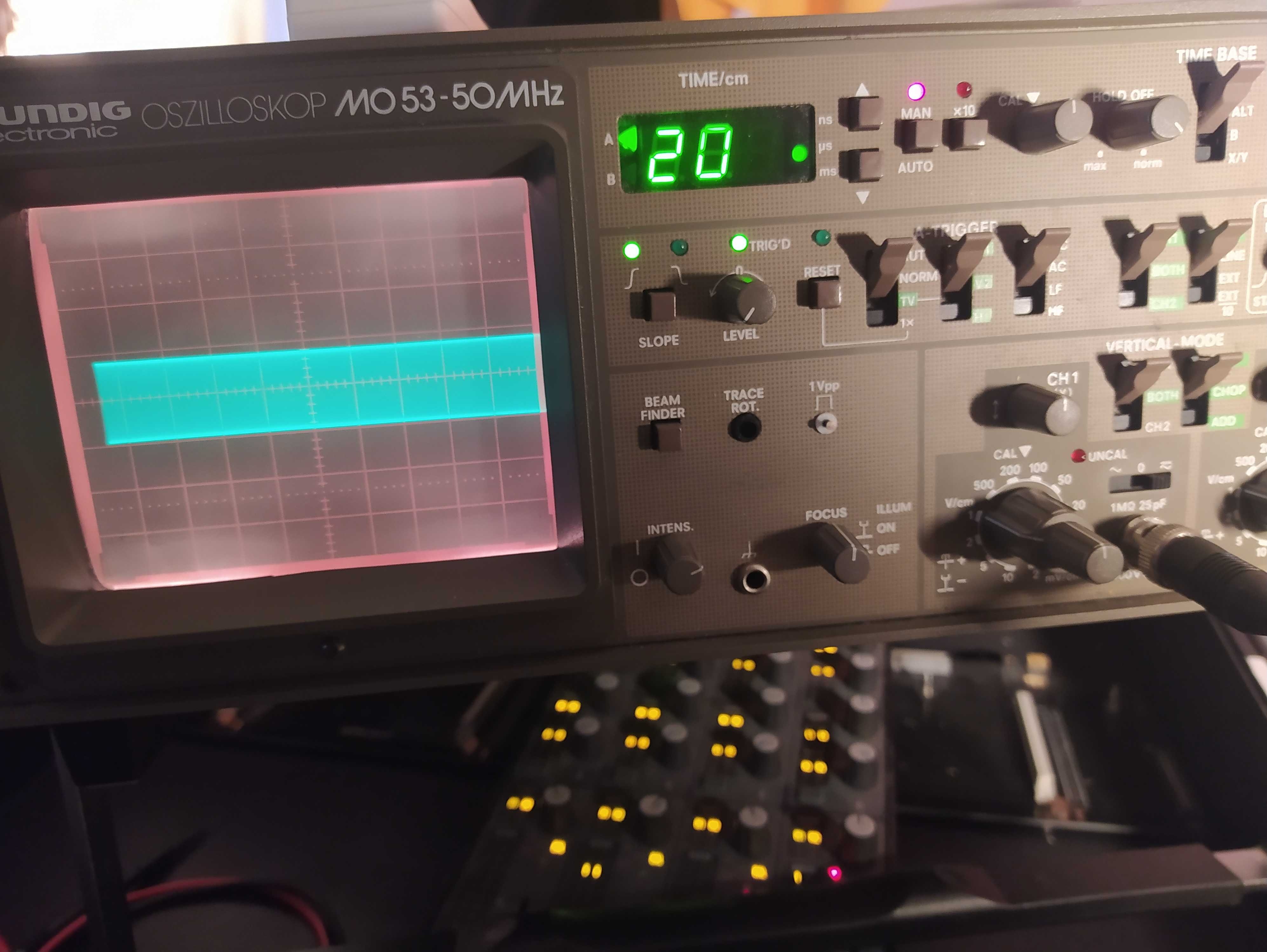

1. -> Download -> 02_Tower 1 -> 06 Master Section -> right side (master audio) -> Master -> Mastermodul_05.pdf 2. Take a Osziloskop and measure at U30 Pin 6. See Photo 1. Here you can see a big sausage. This is a high Sinus Curve which is oszillation very strong... Normaly you should see a line at 0 V. 3. Ok, Mr.Dolenga says it's probably the C65 which is defective. Why? If the C65 is defective than the U30 Oamp is oscillating. To prevent oscillation we need a new C65. We replace the C65 15 pf with a 10pf, because a have only the choice between a 10pf or 20pf or 30pf or 33pf condensator. Mr.Bremer says, a 10 pf is ok. I replace the C65 and the error gones. It works! See Photo 2
