Problem - Console

Replacing TFT LCD screen

Description

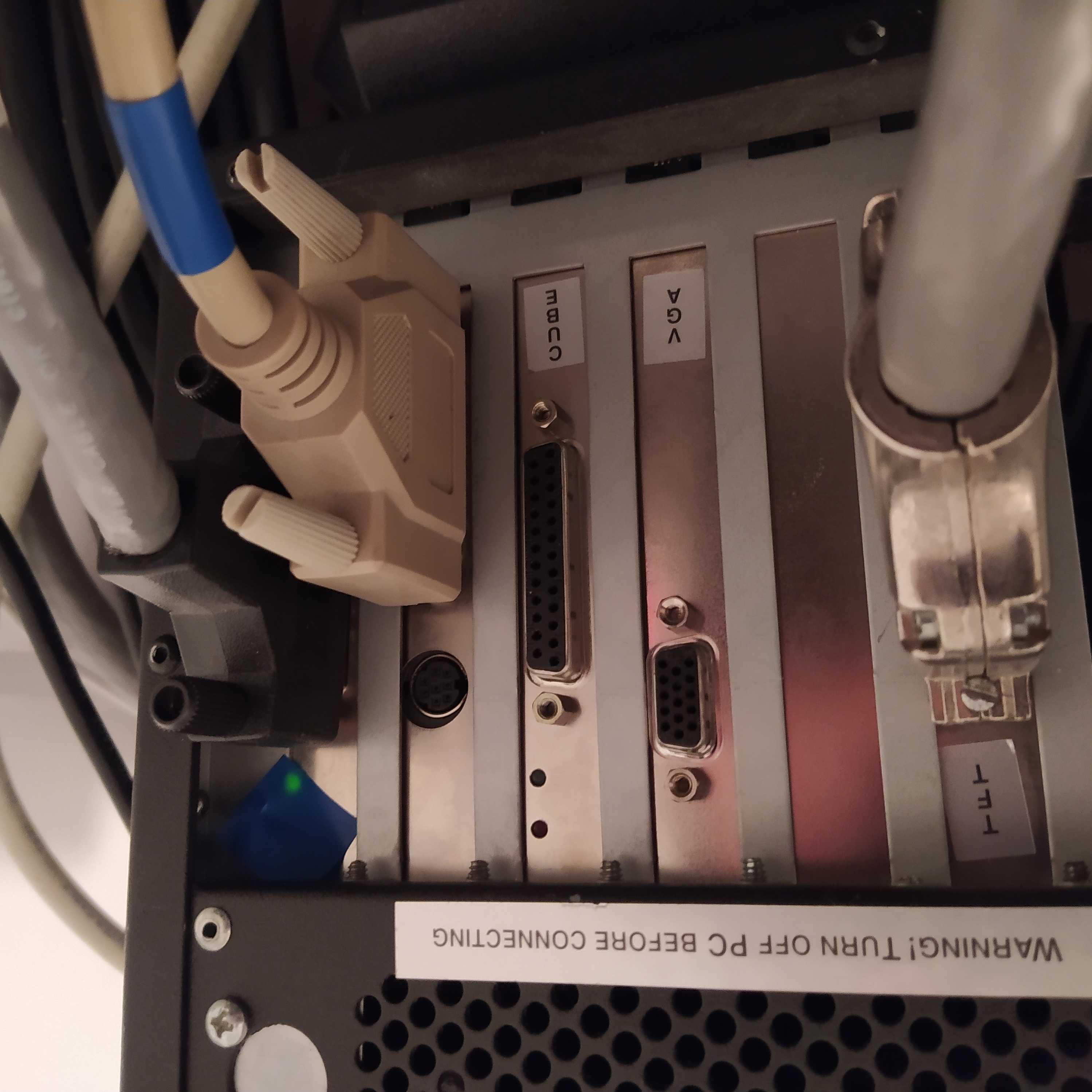

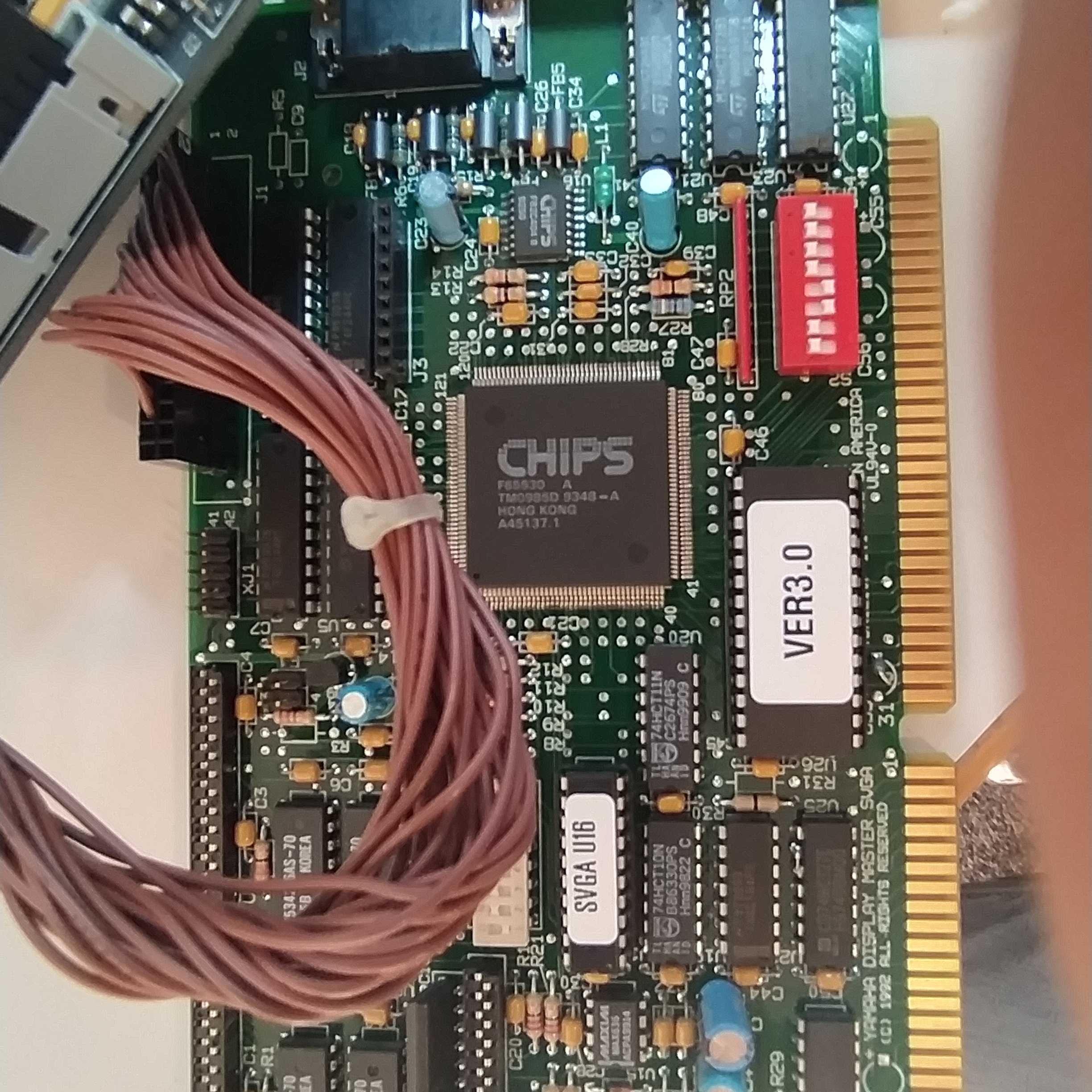

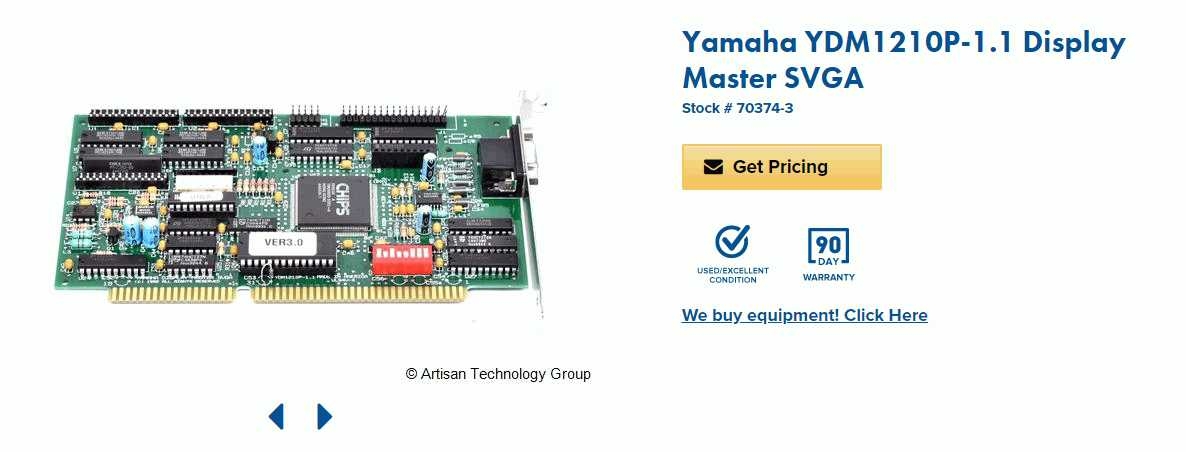

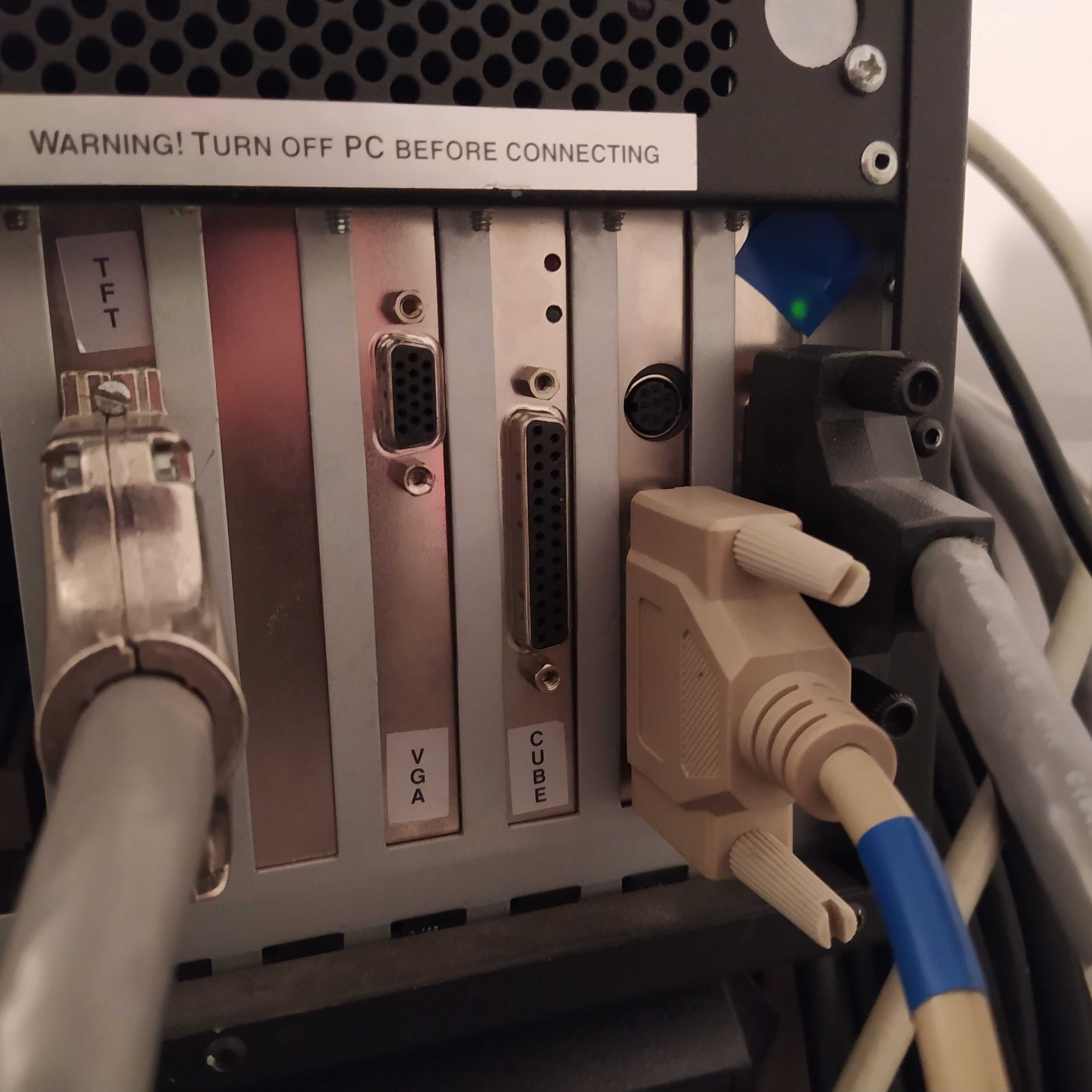

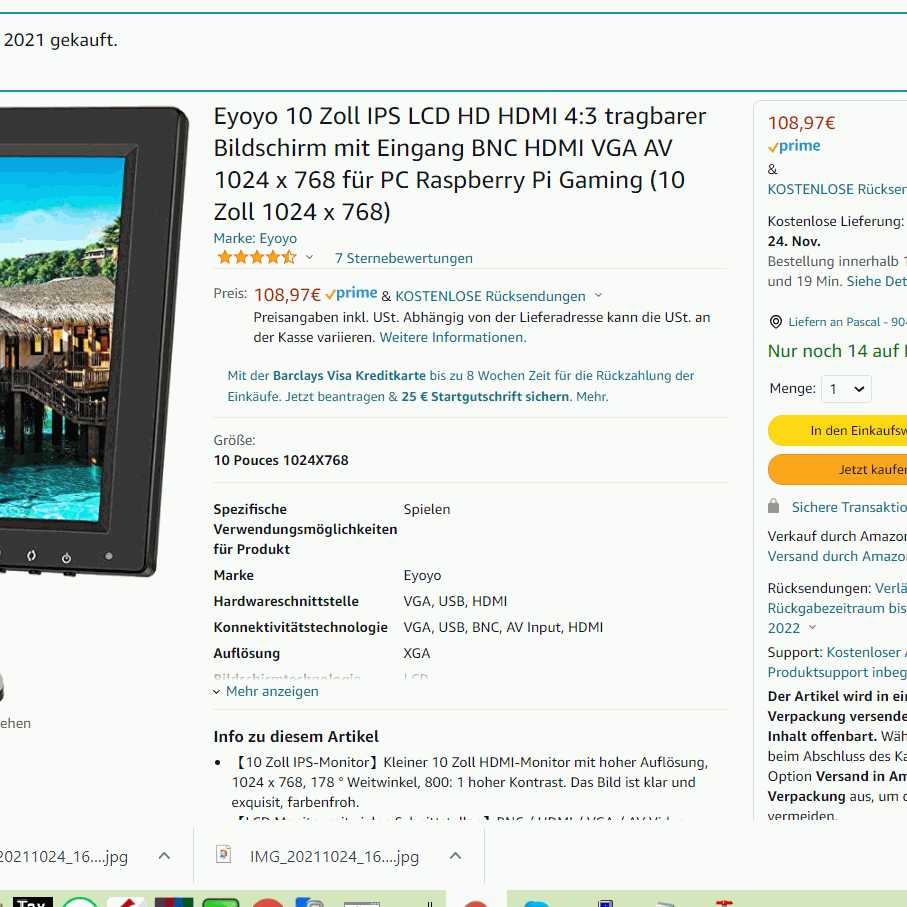

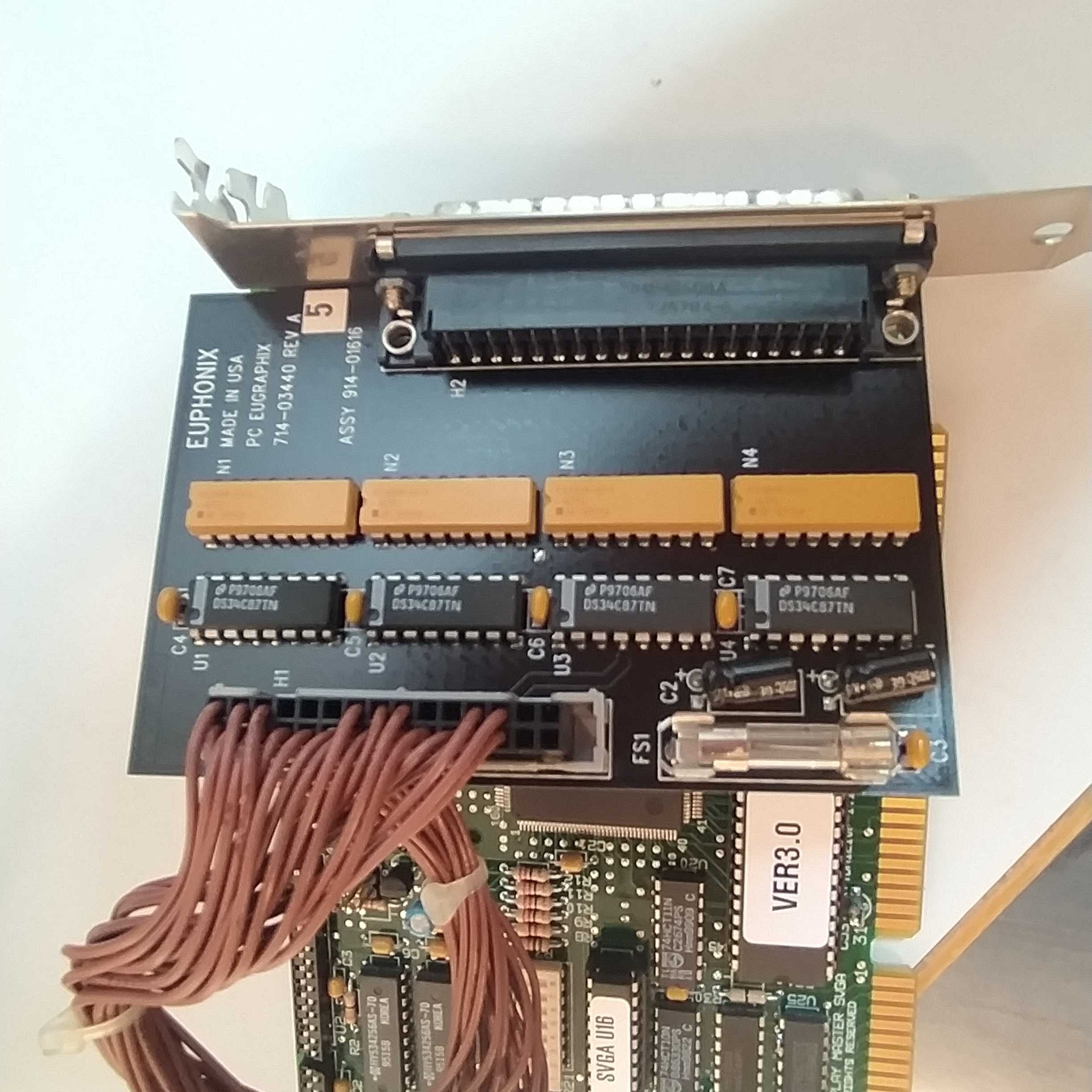

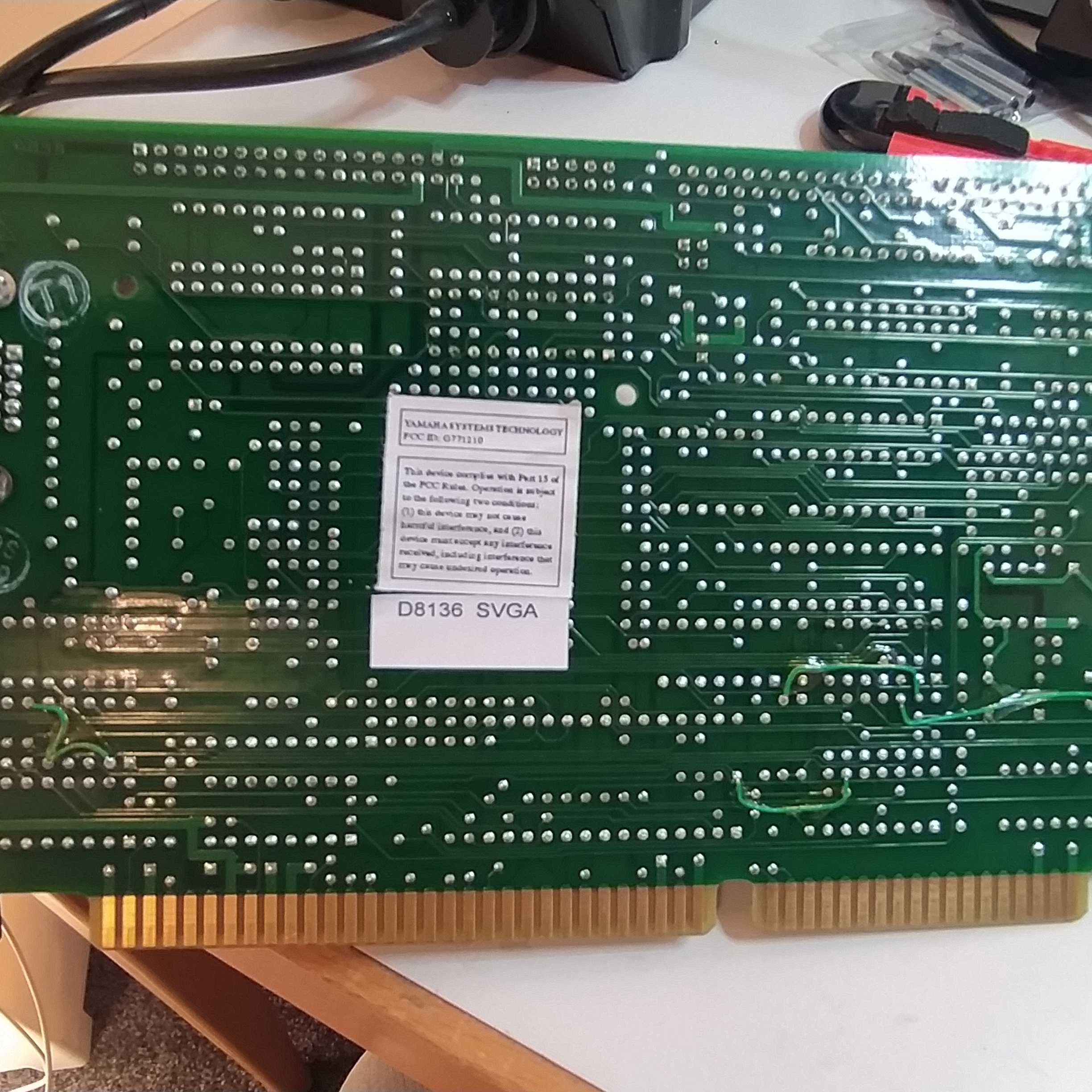

In the PC there is: - VGA graphics card from Yamaha YDM1210P-1.1 Display Master SVGA - and a euphonix "Eugraphics card" The "Eugraphics card" extenion is connected directly to the vga card. The big gray cable is connected on the Eugraphics card (photo 5 + photo 6). Solution: We dont't use the gray cable anymore. Instead we use instead a VGA output of the VGA graphics card and connect the new TFT directly there. Buy a 4:3 TFT Display. But don't buy a tft with 800x600 Pixels or 1024x768 Pixels otherwise the screen is not sharp. This is better: It's better to buy a 640x480 Pixel TFT Display. The screen will be sharp because the pixels don't need to be interpolated. But it's not easy to find a tft 10.4 with only 640x480 and to find the exact vga hardware driver for the tft.
