Problem - Console

Noise problem on channel, like a sinus tone and crazy noise...

Description

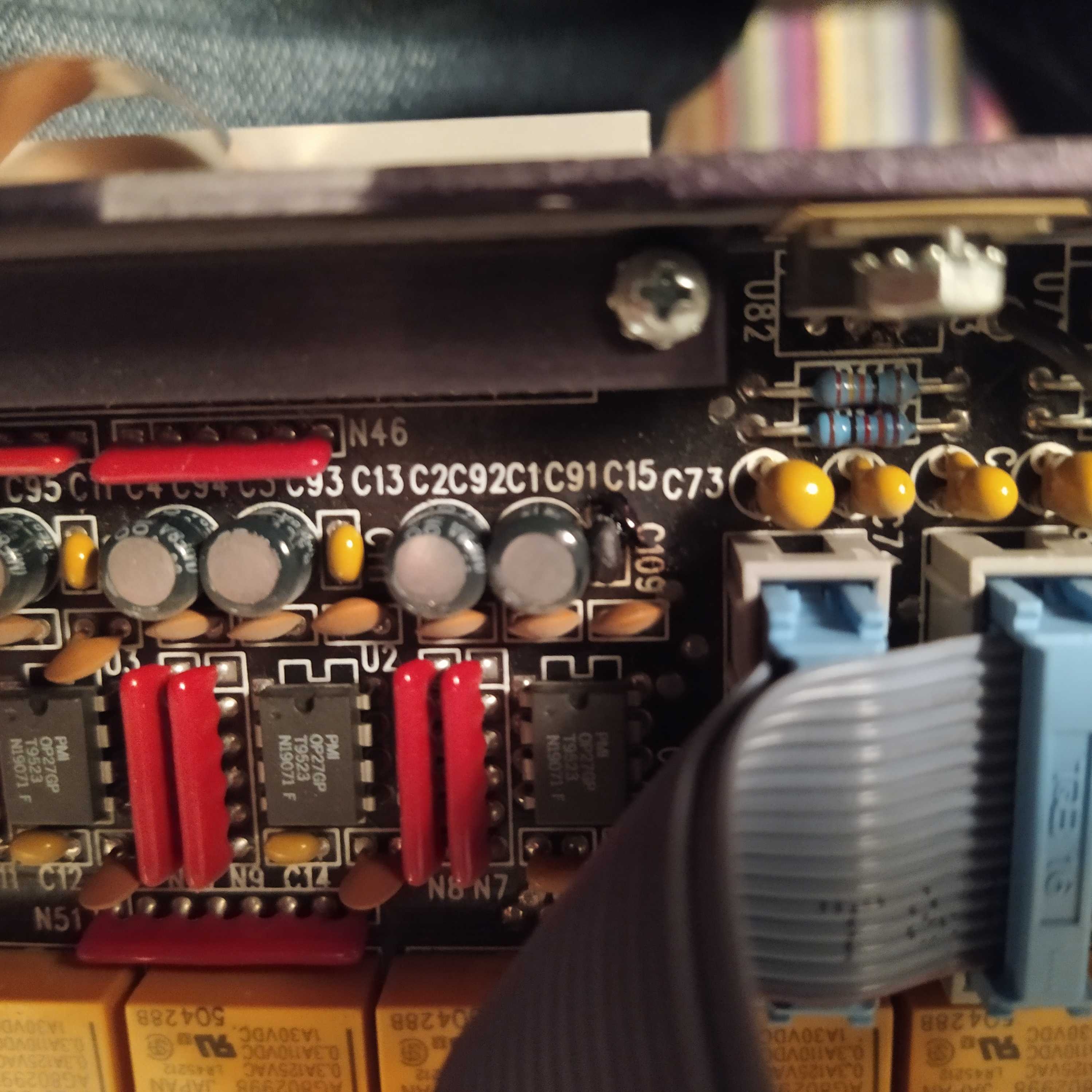

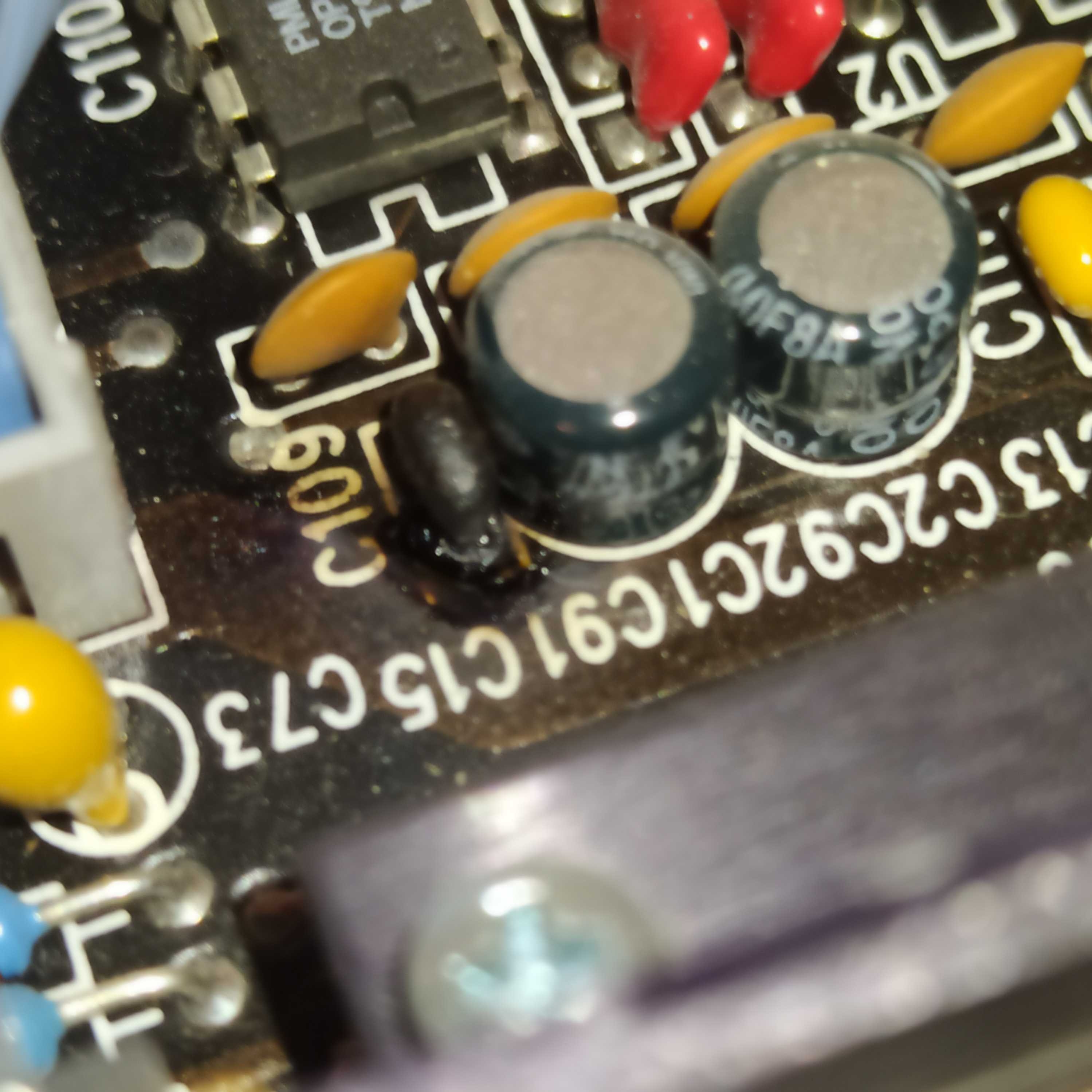

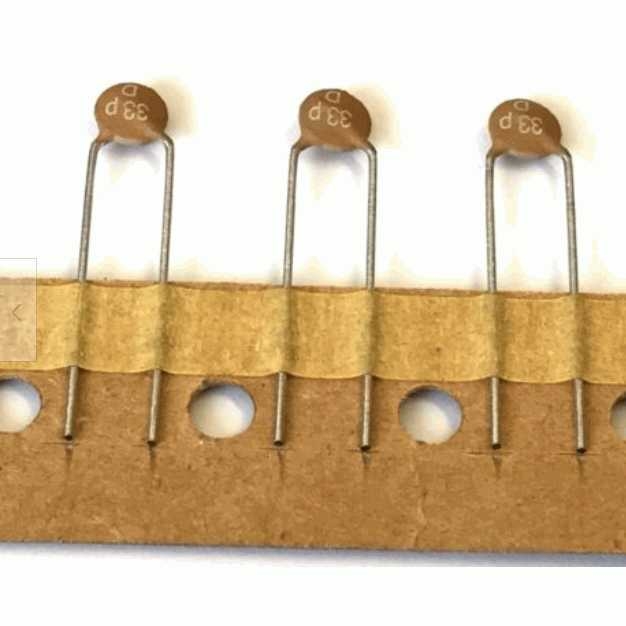

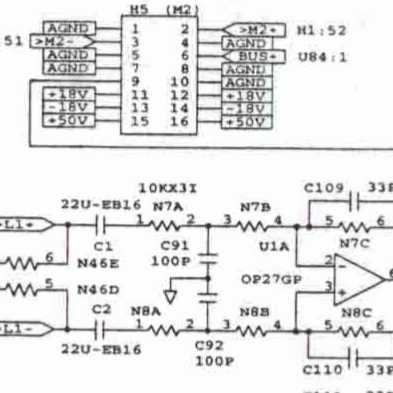

On a tray a so called "Disk" has burned out. As you can see it was C109. -> Go into the download center -> 02_Tower 1 -> 05 Audio Channel -> Main Channel -> Rev E9 -> Main Channel E9 -1.pdf There you can see C109 - 33 P 33P means 33 picofarad!!! Because there is no E, it means this is no!! elko Other examples: 22U-EB16 = 22U means Microfarad the E means = Elko und the B means = bipolar (bipolar=has no direction) the 16 means = 16 Volt!!! da kein E dabeisteht ist es kein Elko N7A = N bedeutet Widerstandsnetzwerk


Video

Pdf
