Reading/understanding the schematics

Description

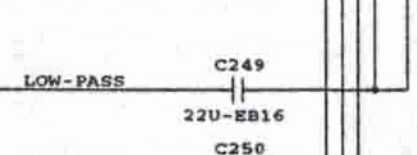

What means "C250 22u EB16"? -> "C" means "Capacitor" -> "250" is the number (each capacitor has a number, so we can find it on the schematics) -> "22u" means "22uf" -> Microfarad -> "EB16" means "Eletrolytic", "B" means "Bipolar" -> jagged line means "resistor" -> jagged line with arrow line means "potentiometer" -> there are also logic chips (in german "logikgatter"), have a look at google for the symbols What means "U10-T25"? -> 10 Microfarad -> T25 = Tantal 25V
