Problem - Es108

How can i assign the ES108a?

Description

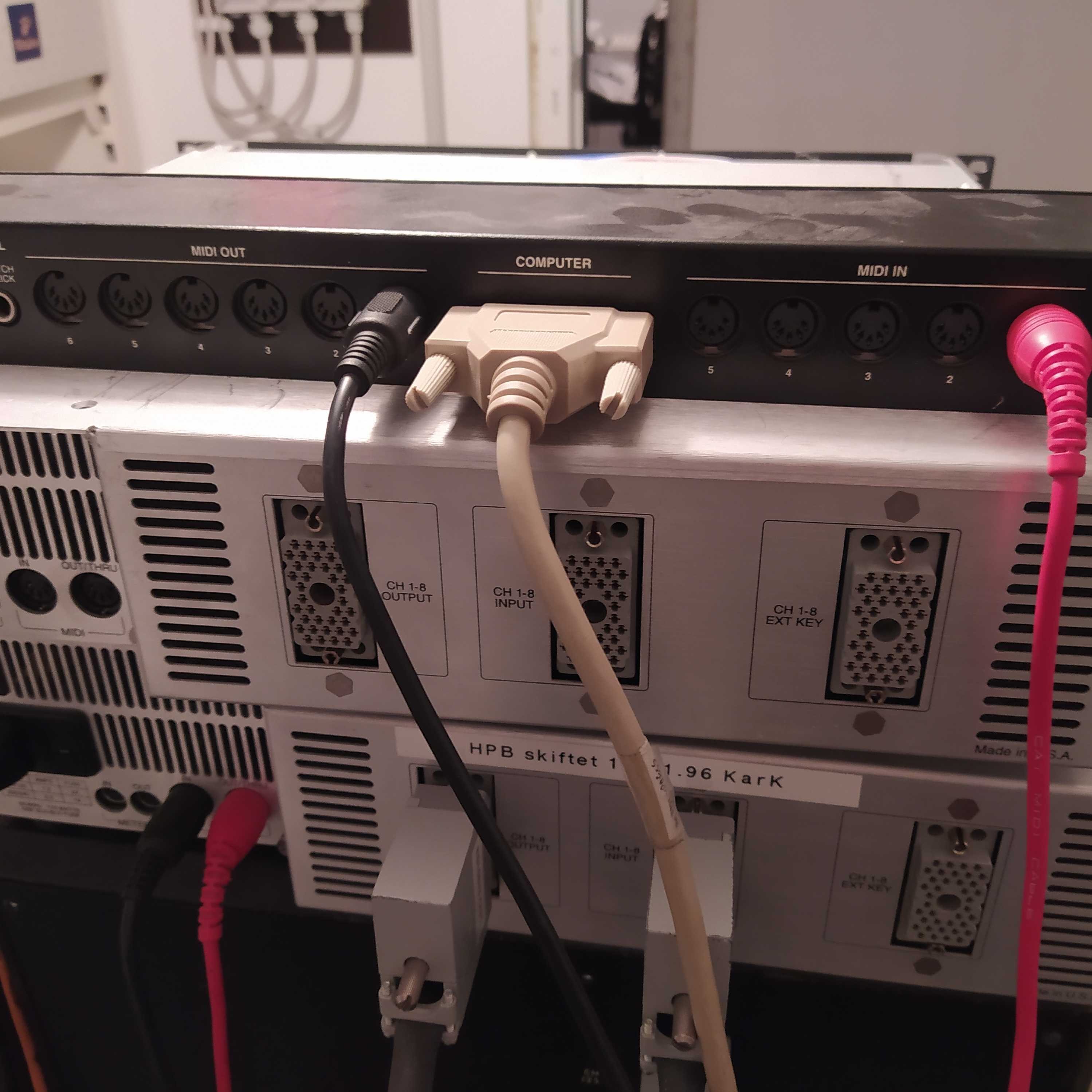

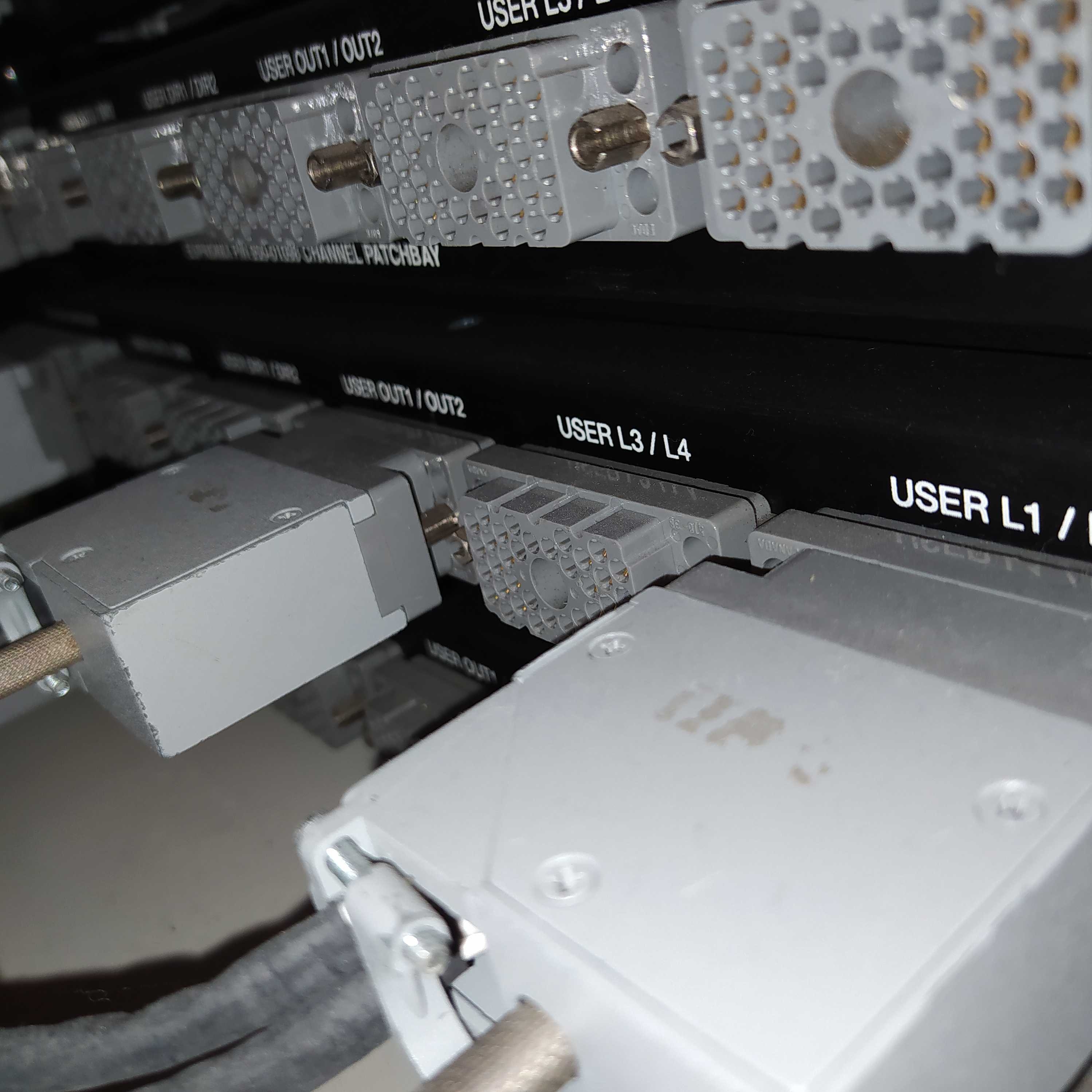

-> You first the connect the ES108a with the midi-interface (Motu). -> Take a midi-cable: Midi-OUT 1 (Motu) goes to ES108 Midi-IN -> Take a midi-cable: ES108 Midi-OUT goes to Midi-IN 1 (Motu) -> Attach the connection cable: from "User L1/L2 (Patchbay)" to "User Out1/Out2 (ES108a)" from "User Out1/Out2 (Patchbay)" to "User Out1/Out2 (ES108a)" -> Click on the button "Dyn" -> Click in the smart meter "F2" -> Click "Assign" -> Click "Clear" -> Confirm "Yes" -> Now have a look on the display at the right side below you will see "Unassigned Dynamics" -> These dynamics can now be used! -> Click on the button "Dyn" -> Click in the smart meter "F2" -> Click "Assign" -> Click "Patch" -> Click now on the "EQ 1"-Button twice! -> Now the dynamic is there -> Click now the "EQ 2"-Button twice now the dynamic is assigned and so on... -> When you click on the button "EQ" you can on all tracks where a EQ is activated -> When you click on the button "DYN" you can see all tacks where a DYN is activated Installation: -> ES 108 Input (Edac) -> Patchbay (Edac) Out -> ES 108 Output (Edac) -> Patchbay (Edac) L1/L2 -> Don't forget to configure the "Outputs" at the controller: -> Click --> Out 1 -> M1 --> Out 2 -> M2
